PKNERGY Wide Temperature Battery

As energy demand increases, we’ve found that traditional lithium batteries struggle to meet the needs of environments with large day-to-night temperature differences, such as deserts. PKNERGY has overcome the battery temperature limit through its innovative aluminum-based cathode patent, developing a wide-temperature range LFP cell that operates from -70°C to 80°C.

Wide Temperature Battery

Working temperature range-50~80°C

Wide Temperature Battery

Max discharge rate:7C

Wide Temperature Battery

-10°C charge and discharge cycle life>800 cycles

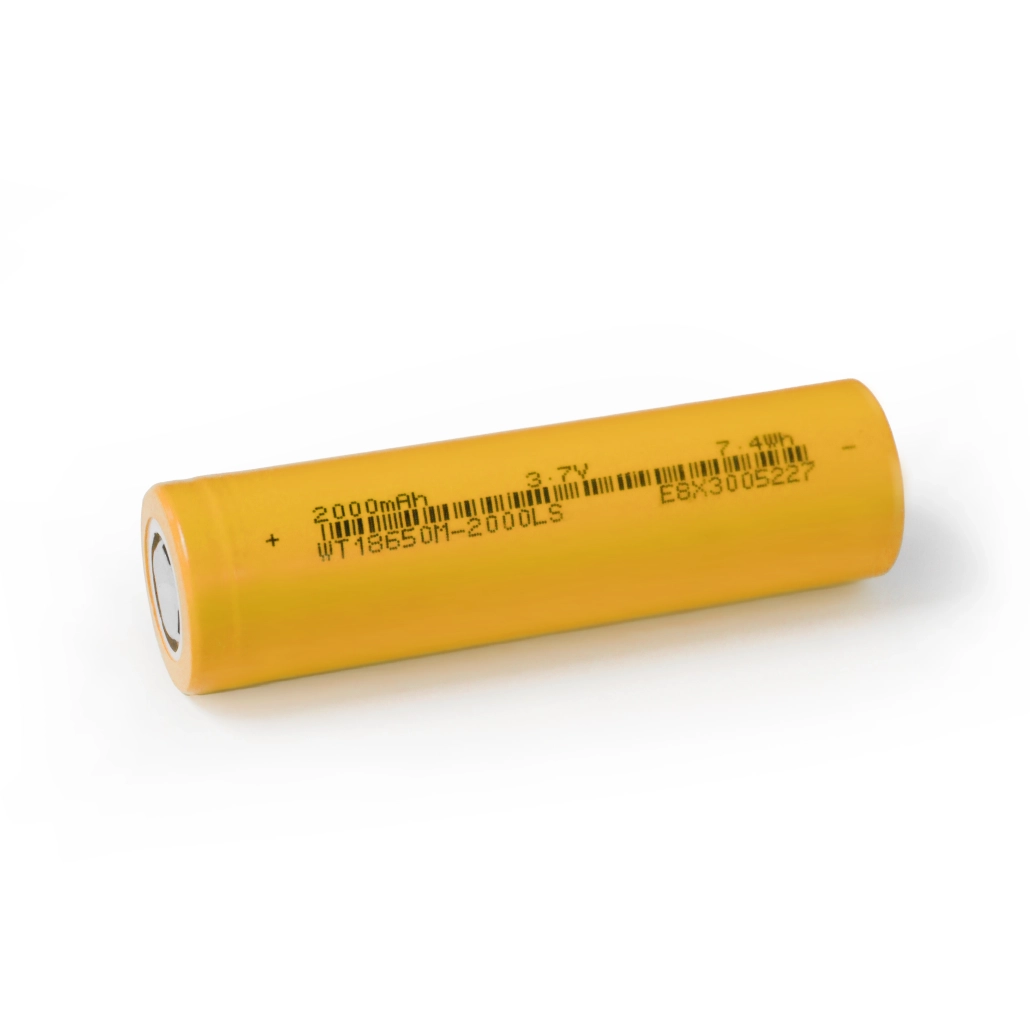

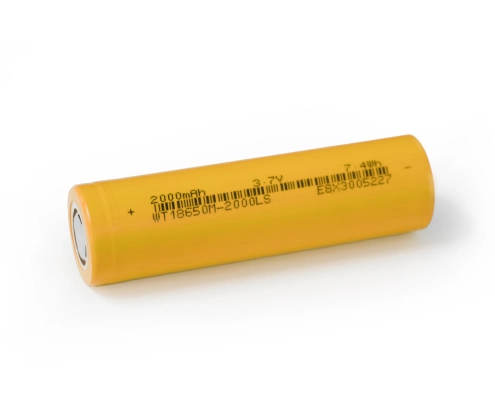

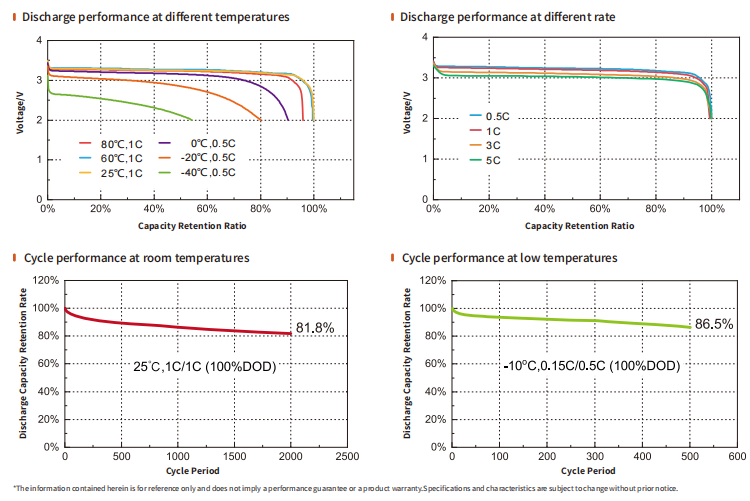

Model WT18650M-2000LS
Capacity Nominal 2000 mAh
Min. 1950 mAh
Internallmpedance AC(1KHz) <30mn
Voltage Nominal 3.7V
Charge Cutoff 42v
Discharge Cut- off 2.5V
Working Temp-range Charge -30-C-60-C
Discharge -50-C-80-C
Charge 0℃-60℃ 2000 mA
-20℃-0℃ 400mA
-30℃-20℃ 200mA
Discharge 0℃-60℃ 1000 mA
40℃-0℃ 1000 mA
Fast Discharge 14.0A
100℃D0D Cycle Life -10℃(0.2C/0.5C) 800 cycles
25+2℃(1C/1C) 1000 cycles
Weight ~48g
Shipment Voltage 3.65V~3.85V

Flexible & Wide Applications

PKNERGY wide temperature battery technology can be applied to lithium polymer batteries, cylindrical batteries, and prismatic batteries, giving highly adaptable batteries to products in different usage scenarios. If you have any questions or ideas, contact PKNERGY and make it happen!

Aluminum-Based Anode Wide temperature Battery Cells - PKNERGY

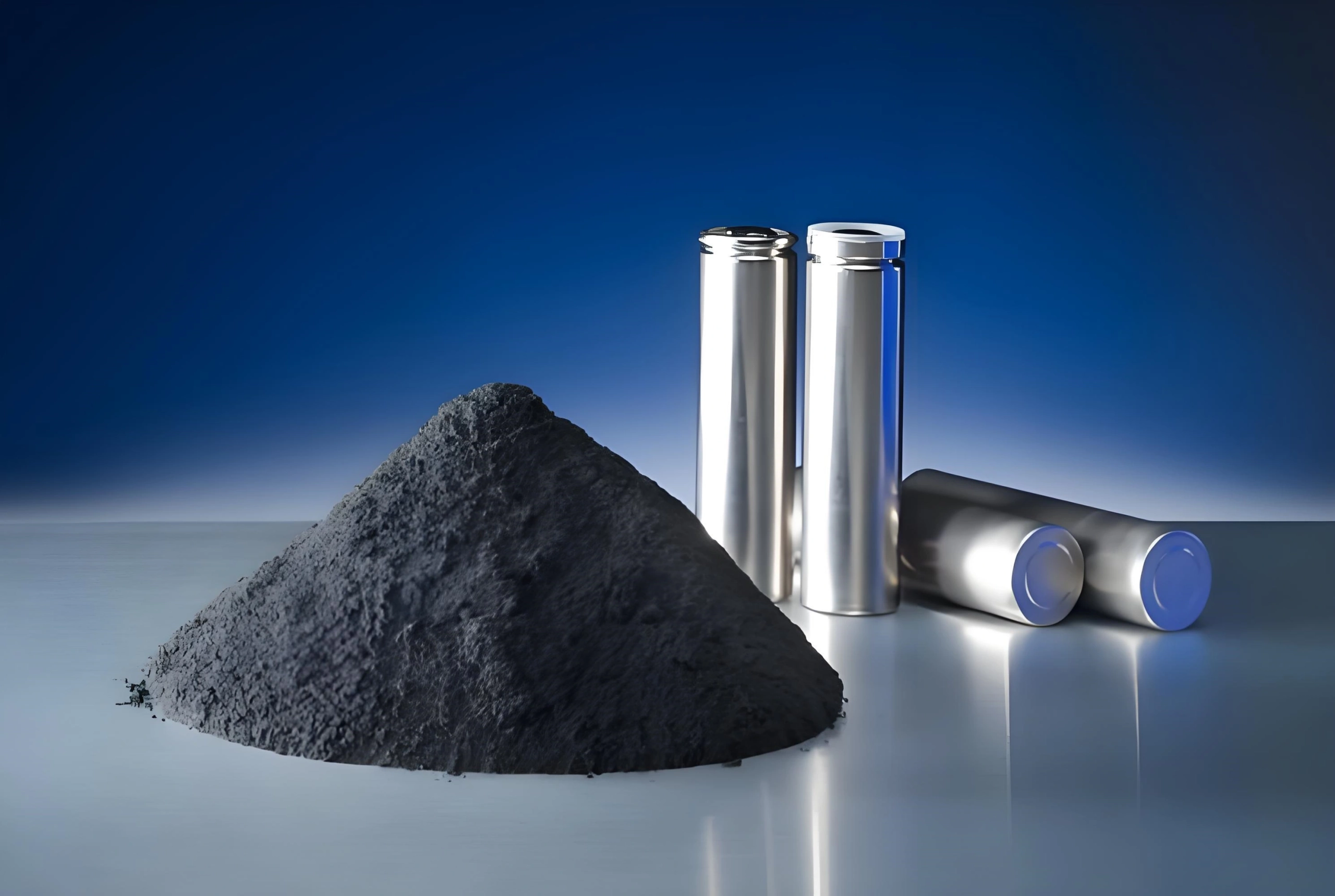

Aluminum-Based Anode Battery Cells

PKNERGY’s unique aluminum-based anode battery cells replace the traditional graphite anodes and electrolyte used in lithium-ion batteries, enabling the wide-temperature batteries to maintain 70% discharge capacity even in extreme cold weather at -70°C. In high-temperature environments, the batteries perform exceptionally well, with a discharge capacity retention of 99% at 80°C—far surpassing the performance of existing lithium battery solutions.

Wide temperature battery

Wide temperature battery VS. lithium battery

Comparison Dimension Wide temperature battery Standard Lithium Battery Advantage
Operating Temperature Range Charging: -30°C to 60°C
Discharging: -50°C to 80°C
Charging: 0°C to 45°C
Discharging: -20°C to 60°C
Stable operation in extreme cold and high-temperature environments, ideal for demanding conditions.
Low-Temperature Charging/Discharging Performance Supports 400mA charging at -20°C
Supports 1000mA discharging at -40°C
Significant performance drop or non-functional below -10°C Efficient performance in extreme cold, ensuring reliable operation in low-temperature regions.
Fast Discharge Capability Supports 14.0A fast discharge Typically supports less than 10A fast discharge Meets high power demand for devices like power tools and high-performance equipment.
Cycle Life Low temperature (-10°C): 800 cycles
Room temperature (25°C): 1000 cycles
Typically less than 500 cycles under deep discharge Longer lifespan under extreme conditions, reducing replacement frequency and saving costs.
Internal Resistance Less than 30mΩ Higher internal resistance, leading to performance drop due to heat More stable and efficient operation, suitable for long-term high-load usage.
Application Scenarios Outdoor equipment in extreme cold or heat
Industrial equipment
Military and aerospace
New energy storage systems
Limited to devices operating in normal temperatures Broader application range, covering more demanding scenarios.

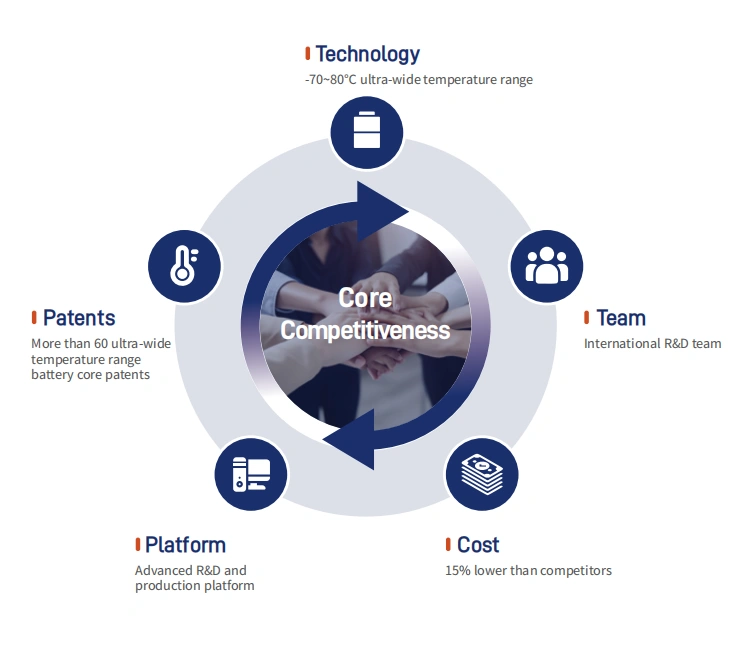

Wide temperature battery advantages

wide temperature battery advantages

Industry-leading wide-temperature technology

The wide-temperature battery has been the Top 10 Most Popular Products. This project has received over $30 million in funding and is backed by a dedicated team of more than 80 R&D professionals, 40% of whom hold PhDs. With over 8 years of expertise in wide-temperature battery development and more than 60 core patents in ultra-wide temperature range technology, we are proud to be an industry-leading manufacturer in this field.

PKNERGY Wide Temperature Battery Patent Certificate

Wide-temperature cell energy storage battery series

This series is mainly designed to provide safe and reliable power storage options for use in cold regions, such as scientific research, borders, and residents. It can provide stable backup power storage even in sub-zero environments.

Wide Temperature Battery

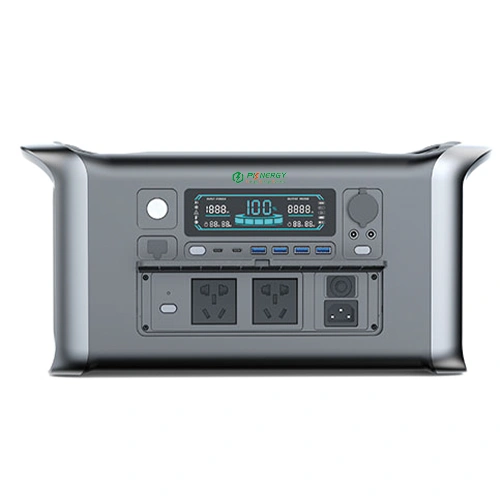

Portable wide temperature battery

Wide Temperature Battery

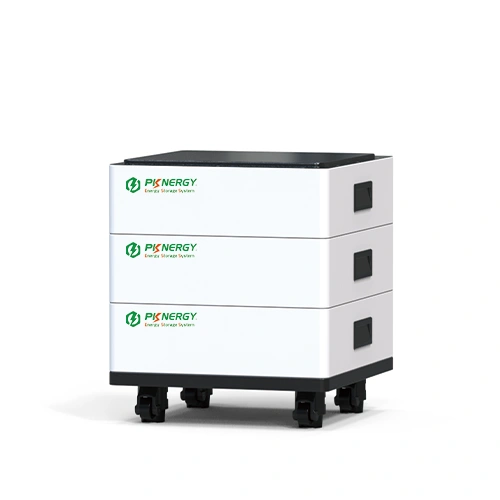

Movable stackable wide temperature battery

Wide Temperature Battery

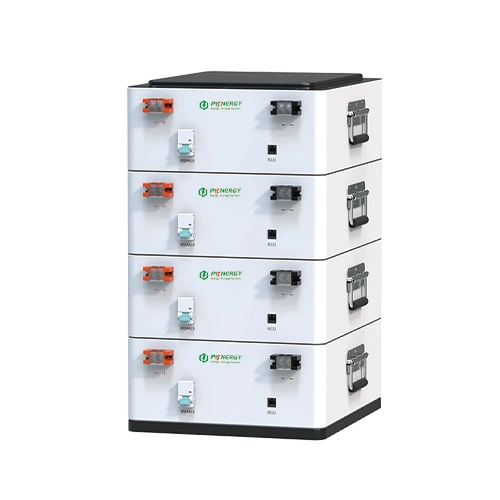

Stackable wide temperature battery

Wide Temperature Battery

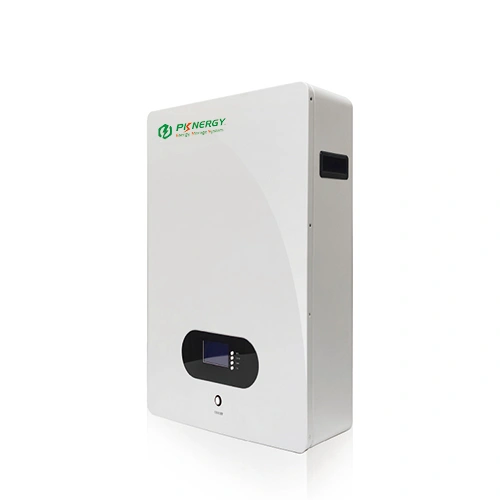

Wall-mounted wide temperature battery

Wide Temperature Battery

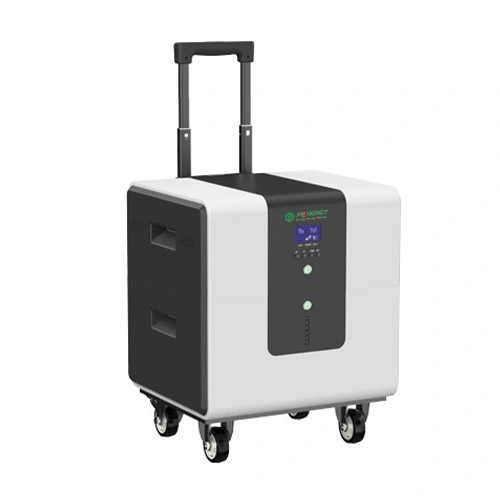

Trolley case wide temperature battery
